The composition of container product:
The container type intelligent microgrid desalination system
is composed of the renewable energy input system (WTGS, photovoltaic
power generation system, etc.), the energy storage system (PCS
+ energy storage battery), the microgrid control system, and
the desalination system, etc. The renewable energy input system
includes WTGS, the photovoltaic power generation system, the
solar-thermal power generation system, etc., which can be selected
as required by the customer. The renewable energy such as
solar energy, wind power, tidal energy and geothermal energy
comes from nature, which is endless and inexhaustible and
of little harm or even harmless to the environment. What¡¯s
more, these resources are widely distributed. If they are
exploited and utilized properly, it¡¯ll be of great significance
to environmental protection and resources protection.
The system has following advantages:
high integration level: except wind turbine generators, photovoltaic
equipments and water tanks, other equipments are all put inside
the container. With compact layout and good flexibility, it
is convenient for transportation;
clean energy: only use clean energy for energy saving and
environmental protection; and there is no pollution to marine
environment;
black start function: the system can start operation without
any support of power;
highly automatic: during operation, the system can start
with a push of button; and the operation is automatic with
remote monitoring function;
protection design: the system is featured with typhoon defense,
corrosion protection and high temperature resistance functions;
The system adjusts to a big range of water quality fluctuation;
the pretreatment system does not need chemical cleaning. Reverse
osmosis system does not require frequent cleaning. It releases
very limited chemicals to the environment, and therefore is
pollution-free. The routine operation cost for the system
is very low. The maintenance of the system is simple and convenient,
which is not labor intensive.
Not only can the integrated system of modular intelligent
microgrid and seawater desalination can supply living water
and electricity to our remote islands and inland brackish
water basins, but also the seawater desalination technology
is an important part of China marine strategic emerging industry.
The technology can be widely applied to vessels to avoid water
shortage during long-distance travel. In the meanwhile, the
complete container modular intelligent microgrid desalination
system may not only be integrated, but also be disassembled
into the microgrid system and the desalination system to be
respectively used in the areas lacking in electricity but
not lacking in water and the areas lacking in water but not
lacking in electricity.
Microgrid system
The microgrid system operation mode includes normal operation
mode (operation mode combining wind energy with energy storage),
complementary operation mode of wind energy and diesel generated
energy, complementary operation mode of wind energy, diesel
generated energy and energy storage, the operation mode by
introducing external power.

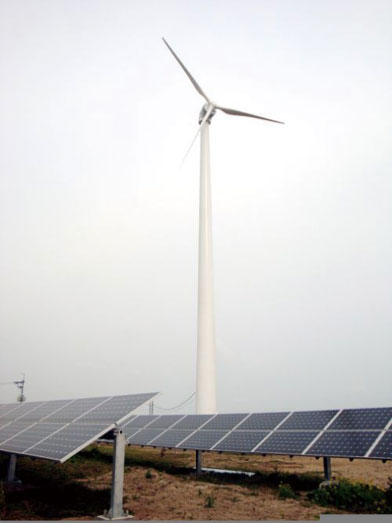

When the wind power is strong enough to start the wind turbine
generator, the wind turbine generator works normally and the
system is in the wind power storage operation mode. Otherwise
if the generated wind power cannot meet the operation conditions
of seawater desalination equipment, the system needs extra
energy supply from the outside to guarantee its operation.
The system has a various operation modes like complementary
operation mode of wind energy and diesel generated energy,
complementary operation mode of wind energy, diesel generated
energy and energy storage, the operation mode of independent
diesel generator power supply, the operation mode by introducing
external power. These modes can be inter-converted. The normal
operation mode of the microgrid system combines wind energy
with energy storage. In such mode, it¡¯s unnecessary to start
diesel generator and the diesel generator is only used in
special cases or for the purpose of guaranteeing the diesel
generator¡¯s safe shutdown. |

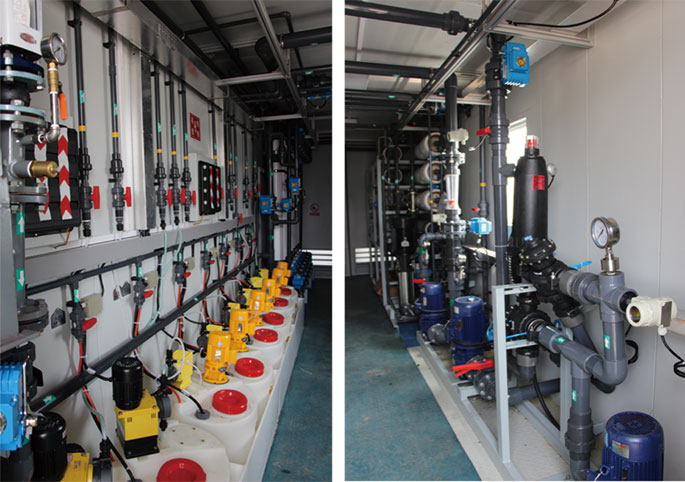

Seawater desalination system
Seawater desalination technology desalinates seawater through
primary and secondary reverse osmosis to make the water meet
living drinking water quality. Based on that, the tertiary reverse
osmosis is adopted to further remove the ions from the water
to acquire bottled (barreled) purified water for drinking. The
strong brine, backwash water from the filter tank and the filter
are released to the neighboring seas after being collected.
Dewater the wastewater in the pre-sedimentation tank and clarification
tank. The chemical cleaned sewage is neutralized for innocent
treatment and then is discharged to municipal sewage pipeline
after reaching the sewage standard. The capacity of seawater
desalination system can be customized as per customer¡¯s demands.
There¡¯re mainly 50T, 100T, 200T, 300T, 500T, 1,000T specification
for customer¡¯s choice. |
